OIL SEAL

OIL SEAL TC

Material :  FKM,NBR
Application:  Cylinder
Type:  Skeleton Seal
Performance:  High Temperature,High Pressure
MOQ:  10pcs
Package:  Plain bag

Category:

Description

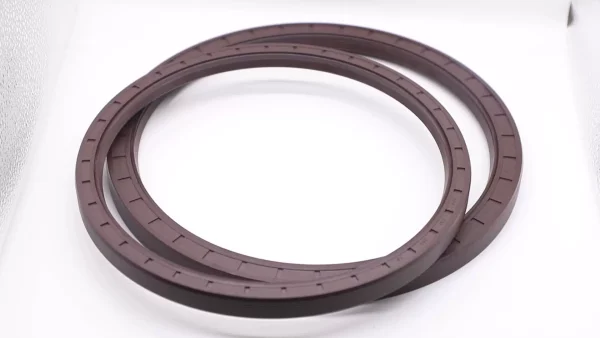

PRODUCT SHOW

mechanical shaft oil seals

mechanical shaft oil seals is a kind of spare parts which are often applied to seal the oil, the other name of oil seal is swivel bearing lip-type packing.
As we know that there is some oil would go-i

n the rubbing parts of the machine usually and in order to resistant against this oil we need to use the oil seal to seal the gap of the machine. More than that, we have to concern to how to seal the water, chemical liquid and the dust, all of these environment calls for the oil seal.

PRODUCTS DETA

ILS:

Packing details：PE bag,carton or according to customer’s needs

Products Descriptions:

Size Customized/standard and nonstandard
Other type TCN ,TC,TB,SC,SB..etc
Temperature Common: 20~50degree centigrade;NBR(-40~120C),ACM(-30~180C),VITON(-25~300C)
Special Features Oil-resistant; heat resistant; abrasion-resistant;aging resistant; insulation; acid and alkaline resistant;airtight; shock absorption, etc.
Type Haplotype
Usage Rear Axle
Lip Single lip
Application mechanical seal,pump seal,engine etc
Delivery Time 3-15 days after confirmation of the sample or according tocustomers’ order quantity
Sample Free
Production Capacity 5000PCS/Month
Sample lead time 10 days
OEM/ODM welcome
Among the oil seals the most common type is the TC oil seal, which is a rubber completely covered double-lip oil seal with a self-tightening spring. The TC profile is a shaft seal composed of a single metal cage with a rubber coating, a primary sealing lip with integrated spring and an additional anti-pollution sealing lip. They also stop dirt, oil or water from entering machinery to prevent damage or failure of the bearing components.
TCV type oil seal is a pressure-resistant oil seal, which belongs to the inner frame and outer rubber type oil seal. It reduces the pressure area of the lip while maintaining rigidity. Its pressure resistance is below 0.5Mpa, and it is also a high-pressure frame oil seal and a hydraulic oil seal.
TCN oil seal is a rubber completely covered with self-tightening spring double lip oil seal, with good heat resistance, wear resistance, resistance to a variety of lubricating oil, grease, oil and gas mixture and other properties.



NO. PART NO. SIZE NO. PART NO. SIZE NO. PART NO. SIZE
1 AP1033I 20*40*11 39 AP4346B 120*150*14 77 AP3618G 75*100*13
2 AP1147F 22*42*10 40 AP4399E 125*155*14 78 AP3744K 80*105*13
3 AP1148F 22*42*11 41 AP4451G 130*160*14 79 AP3842H 85*110*13
4 AP1563J 28*48*11 42 AP4498G 135*165*14 80 AP3932B 90*115*13
5 AP1709H 30*50*11 43 AP4542F 140*170*14 81 AP3994B 95*120*13
6 AP1904F 32*52*11 44 AP4581G 145*175*14 82 AP4063B 100*125*13
7 AP1978G 34*54*11 45 AP4624G 150*180*14 83 AP4153H 105*135*14
8 AP2083G 34*55*11 46 AP4713G 160*190*16 84 AP4212B 110*140*14
9 AP2085G 35*55*11 47 AP4795F 170*200*16 85 AP4282G 115*145*14
10 AP2086F 35*55*12 48 AP1033I 20*40*11 86 AP4346B 120*150*14
11 AP1338F 25*45*11 49 AP1147F 22*42*10 87 AP4399E 125*155*14
12 AP2240G 38*58*11 50 AP1148F 22*42*11 88 AP4451G 130*160*14
13 AP2379F 40*60*12 51 AP1563J 28*48*11 89 AP4498G 135*165*14
14 AP2388E 40*62*11 52 AP1709H 30*50*11 90 AP4542F 140*170*14
15 AP2390Q 40*62*12 53 AP1904F 32*52*11 91 AP4581G 145*175*14
16 AP2507H 42*65*12 54 AP1978G 34*54*11 92 AP4624G 150*180*14
17 AP2659E 45*65*12 55 AP2083G 34*55*11 93 AP4713G 160*190*16
18 AP2668G 45*68*12 56 AP2085G 35*55*11 94 AP4795F 170*200*16
19 AP2791G 48*70*12 57 AP2086F 35*55*12 95 AP0598A 15*30*7
20 AP2864I 50*72*12 58 AP1338F 25*45*11 96 AP0787E 17*30*8-0745
21 AP2965F 52*75*9/12 59 AP2240G 38*58*11 97 AP0760E 17*35*8
22 AP2967F 52*75*12 60 AP2379F 40*60*12 98 AP0997E 20*32*8
23 AP3055F 55*78*12 61 AP2388E 40*62*11 99 AP1260F 24*40*8
24 AP3154G 55*80*12 62 AP2390Q 40*62*12 100 AP1665E 30*40*7
25 AP3222B 60*82*12 63 AP2507H 42*65*12 101 AP2085A 35*55*11
26 AP3297G 62*85*12 64 AP2659E 45*65*12 102 AP2240A 38*58*11
27 AP3409F 65*90*13 65 AP2668G 45*68*12 103 AP2388A 40*62*11
28 AP3461E 68*90*14 66 AP2791G 48*70*12 104 AP2668A 45*68*12
29 AP3527B 70*95*13 67 AP2864I 50*72*12 105 AP2775G 48*62*9
30 AP3618G 75*100*13 68 AP2965F 52*75*9/12 106 AP2083G 35*55*9
31 AP3744K 80*105*13 69 AP2967F 52*75*12 107 AP2651G0 45*62*9
32 AP3842H 85*110*13 70 AP3055F 55*78*12 108 AP2666F 45*68*9
33 AP3932B 90*115*13 71 AP3154G 55*80*12 109 AP8738E 50*72*7
34 AP3994B 95*120*13 72 AP3222B 60*82*12 110 AP2861E 52*72*9
35 AP4063B 100*125*13 73 AP3297G 62*85*12 111 AP3053E 55*78*9
36 AP4153H 105*135*14 74 AP3409F 65*90*13 112 AE3154A 58*80*12
37 AP4212B 110*140*14 75 AP3461E 68*90*14 113 AE0743E 17*30*7
38 AP4282G 115*145*14 76 AP3527B 70*95*13 114 AE0751H 17*32*8



NO. PART NO. SIZE NO. PART NO. SIZE NO. PART NO. SIZE
115 AE00817A 18*30*7 147 AW4453 130*160/165*17 179 BW4528E 160*190*21
116 AE1013A 20*35*8 148 AD3618 75*100*13 180 BW4526H 190*225*21
117 AE1314A 25*40*8 149 AD3744 80*105*13 181 BW5180E 200*235*26
118 AE1538E 28*40*8 150 AD3842 85*110*13 182
119 AE2361E 40*55*9 151 AD3932 90*115*13 183 BW4527E 232*267*21
120 AE2388A 40*62*11 152 AD3994 95*120*13 184 BW4815E 245*285*27
121 AE2507A 42*55*12 153 AD4063 100*125*13 185 BW5856E 252*287*21
122 AE12668A 45*68*12 154 AD4153 105*135*14 186 BA3366 180*210*16/18
123 AE3055A 55*78*12 155 AD4212 110*140*14 187 BA3659/5019 195*225*16/18
124 AE3222A 60*82*12 156 AD4282 115*145*14 188 BA4023 230*260*16/18
125 AE3297G 60*85*12 157 AD4346 120*150*14 189 BZ5034E 65*105*4
126 AE3400A 65*88*12 158 AD4399 125*155*14 190 BC5667 140*170*12.5
127 AE3409A 65*90*13 159 AD4451 130*160*14 191 BC56666E 160*190*13.5
128 AE3505E 70*88*12 160 AD4542 140*170*14 192 XP0803E 55*78*9/9.5
129 AE3519A 70*92*12 161 AD4581 145*175*14 193 UP0445E 44.45-63.55-9.5
130 AE3618A 75*100*13 162 AD4624 150*180*14 194 UP0449E 35*57*8
131 AE3743A 80*105*13 163 AD4713 160*190*16 195 UP0450E 33.5*72.5*10
132 AE3994E 95*120*13 164 AD4983 190*225*16 196 BP4561E 35*60*15
133 AE4062A 100*125*12 165 AD5061 200*235*18 197 BP1518E 17*30*8-0745
134 AE4153E 105*135*14 166 AD5205 220*250*16 198 BP3054E 65*90*9/12
135 AE4282E 115*145*14 167 AD5346 240*275*16 199 BP0494E 72*95*13
136 AE4390E 125*140*4 168 AD5562 280*320*22 200 BP2777E 75*95*11
137 AW2086E 35*55*12 169 BW0306E 48*70*18 201 XZ0531E 130*250*2.5*7
138 AW2388E 40*62*11 170 BW0487E 70*95*20 202 XZ0532E 165*240*4/8
139 AW2390E 40*62*12 171 BW4680E 122*152*21 203 AR3505E 70*88*12
140 AW2668E 45*68*12 172 BW0760E 125*155*18 204 15Z 22*42*10
141 AW2864E 50*72*12 173 BW5668E 140*170*17 205 15Z 25*42*10
142 AW3055H 55*78*12 174 BW5669E 140*170*18 206 15Z 80*100*10
143 AW3222E 60*82*12 175 BW4545E 140*170*20 207 15Z 90*110*10
144 AW4063E 100*125*13 176 BW1748E 140*170*22 208 15Z 150*180*15.2
145 AW4068E 100*125*20 177 BW5602E 150*180*18 209 15Z 160*190*16.5
146 AW5054E 200*230*15 178 BW5073E 160*190*23 210 15Z 79.8*95*6
